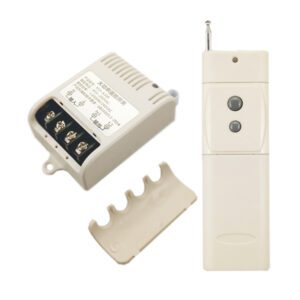

Product Type: KGS-A10B-3
Working voltage: AC 85V ~ 260V
Working frequency : 315MHZ
Contact capacity: ≤ 30A / 250VAC; 30A / 30VDC
Receiver sensitivity : > -105dB
Remote control distance: 3000 meters (open space without interference)
Number of control channels: 1 voltage output (or normally open contact).
Encoding Type: Learning Type.
Working mode: short (M) non-latched (jog), short (T) for the self-locking, are not short for interlocking.
Learning method: turn on the power indicator light for 3 seconds, the indicator goes out once press the learning button, then the light is on, press the remote control button light off, learning success.
Clear code: turn on the power indicator light for 3 seconds, press and hold the learning button while the indicator light is lit, 8 seconds after the light is off, clear the success.
Always open the learning method: turn on the power indicator light, immediately press 2 times the learning button, the indicator light is turned off again and so on, and so the indicator light goes out, press the learning button once, the indicator light, press the remote control button , The indicator light goes out and the study is successful.
If you want to turn on the power button, press the button once and wait until the learning button is on and off. Press the button once and the indicator light is on. At this time, press the remote control button, the indicator light goes out and learn success.
Receiver board size: 70 * 50 * 22mm
